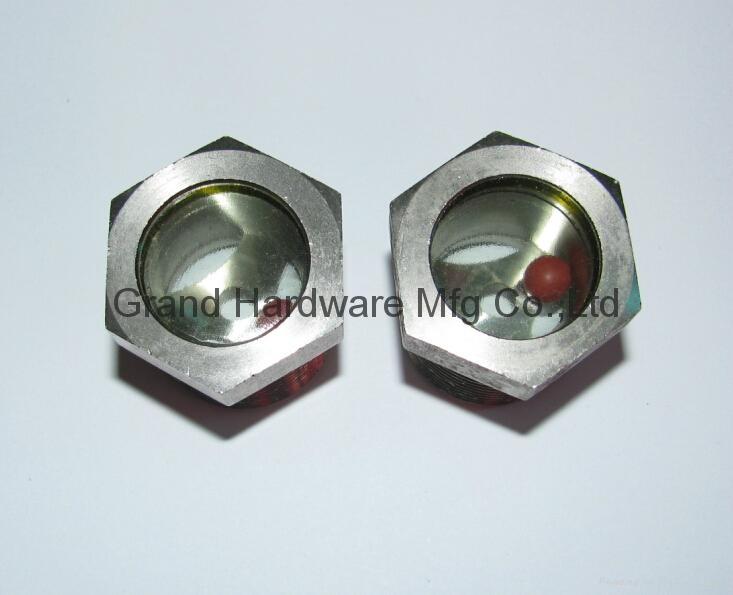

Steel Fused window sights nickel plated, Steel fused sight windows nickel plated, Steel Flange fused glass oil sight glass nickel plated, stainless steel fused sight glass, Fused glass style sight windows, Steel Sintered Sight Glass Nickel plated, oil sight glass plugs, round observation ports, NPT sight glass windows, reservoir oil sight glass, hydraulic tank oil sight glass
Feature glass to metal bond for utmost reliability.
Plated steel bodies have convenient hex wrench surface.
Connection are Standard NPT, UNC, UNF and BSP (G thread) from 1/4" to 2".
Windows are clear, ripple free, and flush with the front face,
Having no recess on which dirt might collect.
Service: Compatible gases and liquids.
Window: nature glass.
Body: plated steed and stainless steel 304, SS316
Temperature: -30 Celsius Degree to 260 Celsius Degree (500 F).
Pressure: 125 psig (8.6bar)
Connections: NPTF, NPT, UNC, UNF, Metric and BSP (G thread)
Size: 1/4" to 2"
MOQ: 1000 Pcs each size
Delivery time: 20 days.
Usage: Pump, liquid Thin-wall container, Radiator,Hydraulic oil reservoir, oil receivers,oil level regulator, oil separator, Gearboxes, Speed Reducer, screw Compressor, refrigerator, cooling & heating exchange, Power Transmission, fluid sighting on hydraulic tanks, pressure vessels, reservoirs, packaged power equipment, hydraulic lines and dipping. Their use can be applied to any application where oil or fluid inspection is essential.
