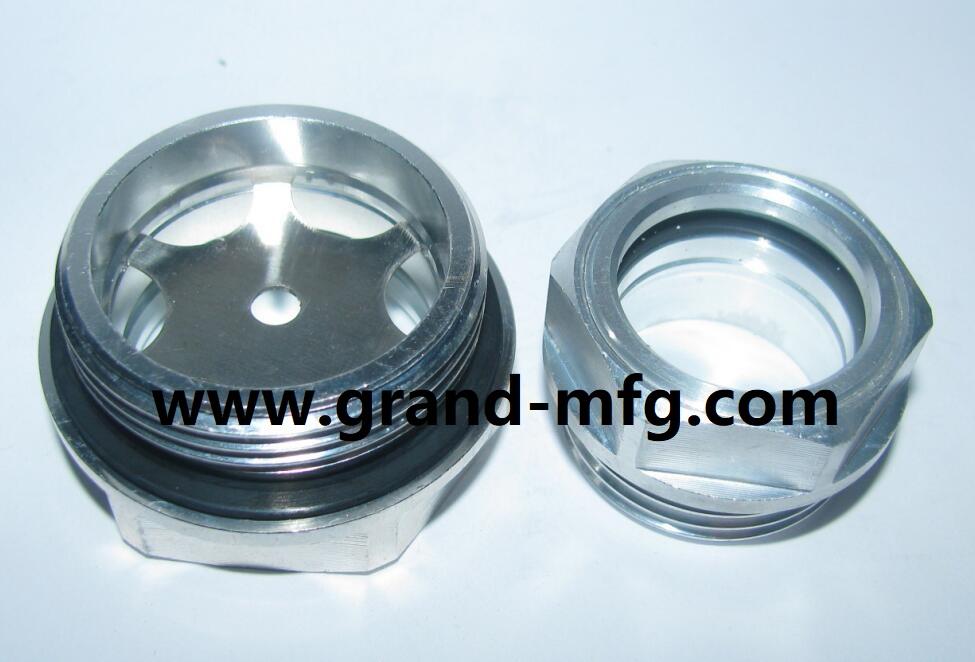

GrandMfg® Oil level Sight glass
Body material: aluminum, brass, PC, PPMA and steel
Glass: Real glass 2 mm to 5 mm thickness.
O Ring: Viton O rings

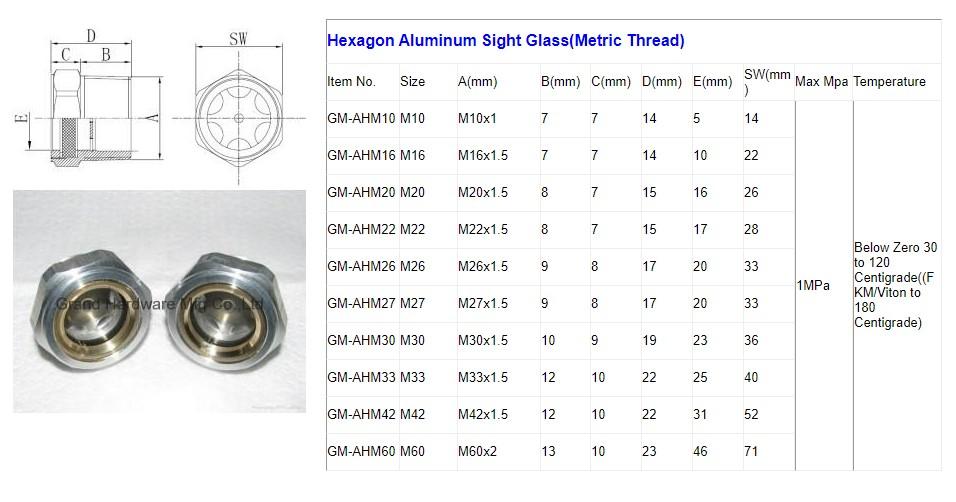

Size: M10 to M42, 1/2 inch to 2 inch
Thread Type: NPTF, NPT, UNC, UNF, Metric and BSP (G thread)
Operate Temperature: -20 Celsius degree to 120 Celsius degree
Operate Pressure: 5-10 Bar or 0.5MPa to 1 MPa.
MOQ: 2000 Pcs each size
Delivery time: 20 days.
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor, Power Transmission, hydraulic tanks, pressure vessels, reservoirs, packaged power equipment, hydraulic lines and dipping. Their use can be applied to any application where oil or fluid inspection is essential. Different company have different requirements, OEM Service is welcome.
