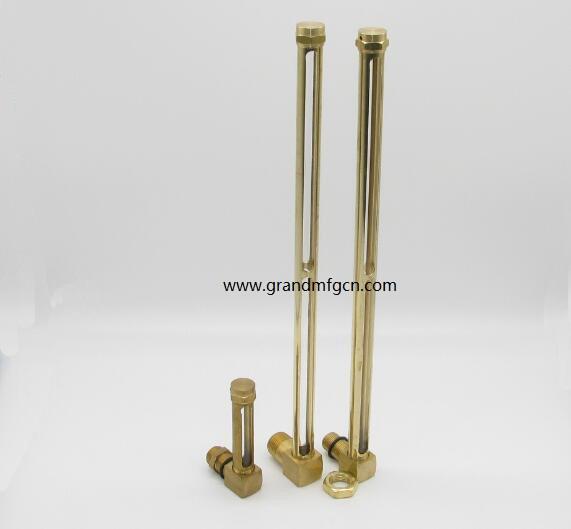

Elbow Brass tubular Oil level gauge with glass tube(L Type)

GrandMfg® Tubular Brass Oil level Indicator Gauge

Tubular Brass oil level gauge indicator with vented hole

Brass oil or liquid level Gauge with glass tube.

H=length of window(mm)

Total length=H+30mm (the distance of vented hole to the middle of the connector)

Housing: Brass Tube(19mm tube and 16mm tube)

Tube: Borosilicate Glass Tube

O-Ring and Flat gaskets: NBR Rubber.

Thread szie: M12x1.25, M14x1.5, M16x1.5

                     G1/4”, G3/8”, G1/2”

                     NPT1/4, NPT3/8, NPT1/2”

Temperature resistant: -20’C to 120 ‘C. / 0’F to 260 ‘F

The length of the tube: 50mm to 500mm

Usage:  Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.
