Heavy duty radiator aluminum oil level sight glass plugs G1-1/4" and M42x1.5

ALUMINUM OIL SIGHT GLASS
  • ALUMINUM OIL SIGHT GLASS
  • ALUMINUM OIL SIGHT GLASS
  • ALUMINUM OIL SIGHT GLASS
  • Circular aluminum oil level indicator
  • ALUMINUM OIL SIGHT GLASS
  • ALUMINUM OIL SIGHT GLASS
  • ALUMINUM OIL SIGHT GLASS
  • Heavy duty radiator aluminum oil level sight glass plugs G1-1/4" and M42x1.5
  • Heavy duty radiator aluminum oil level sight glass plugs G1-1/4" and M42x1.5
  • GRANDMFG ALUMINUM OIL SIGHT GLASS
Model No.︰GM-AM42
Brand Name︰GrandMfg®
Country of Origin︰China
Unit Price︰US $ 2.2 / pc
Minimum Order︰500 pc
Share on:

 Total 32 Related Items
Prev34567Next

Product Description

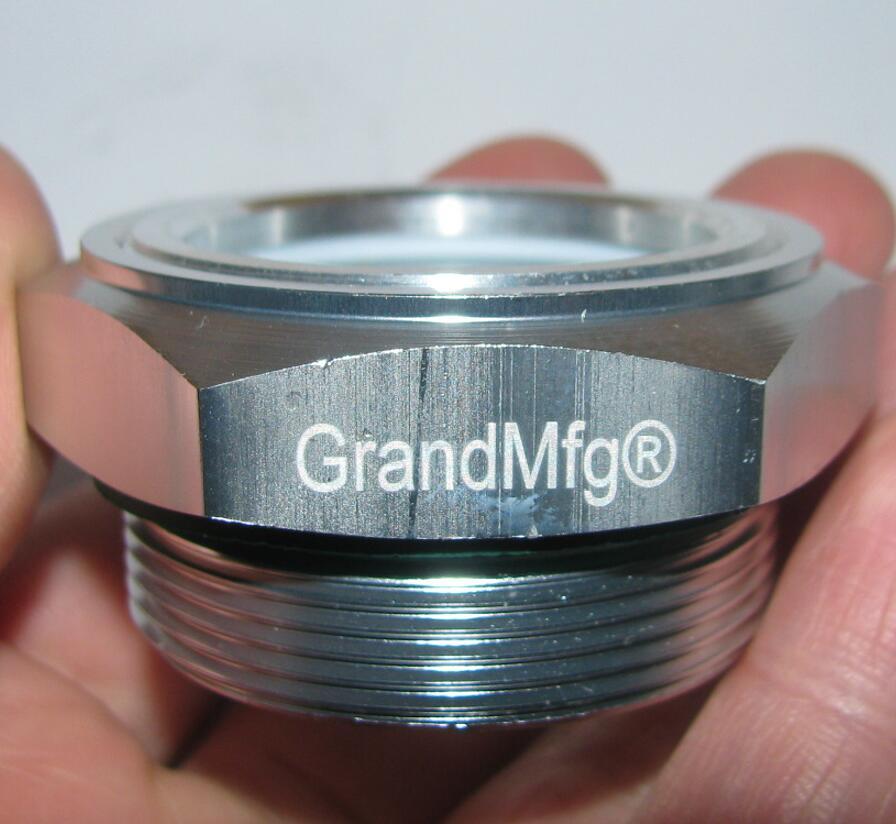

GrandMfg® Aluminum Oil level sight glass Indicator plugs

Material Body:   Aluminum 6061 T6/Aluminum 6063

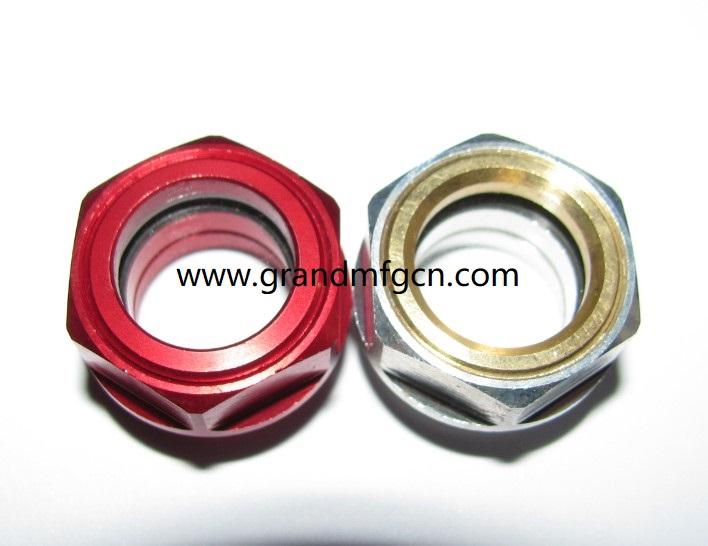

Finish: aluminum natural and aluminum oxidized color/ Anodizing color.

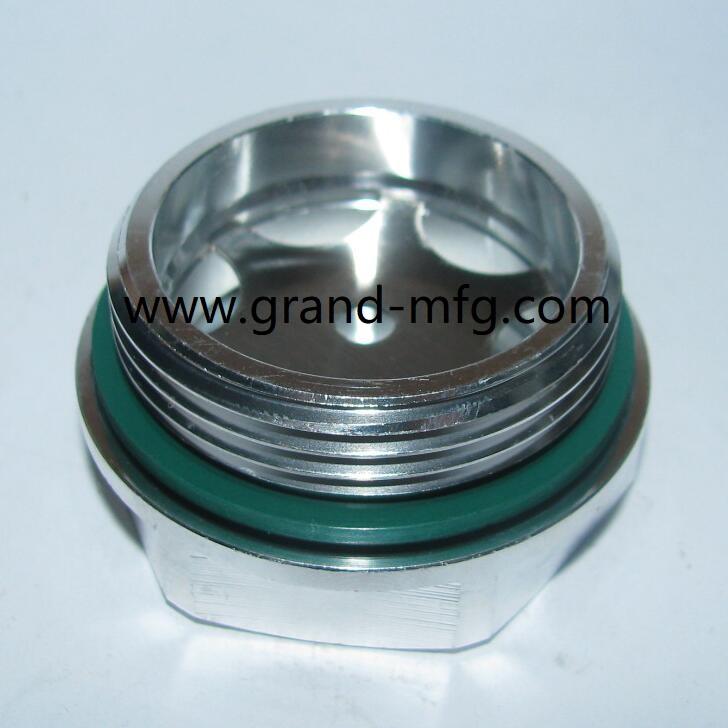

O-Ring: Viton,
FKM,FPM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 8 mm

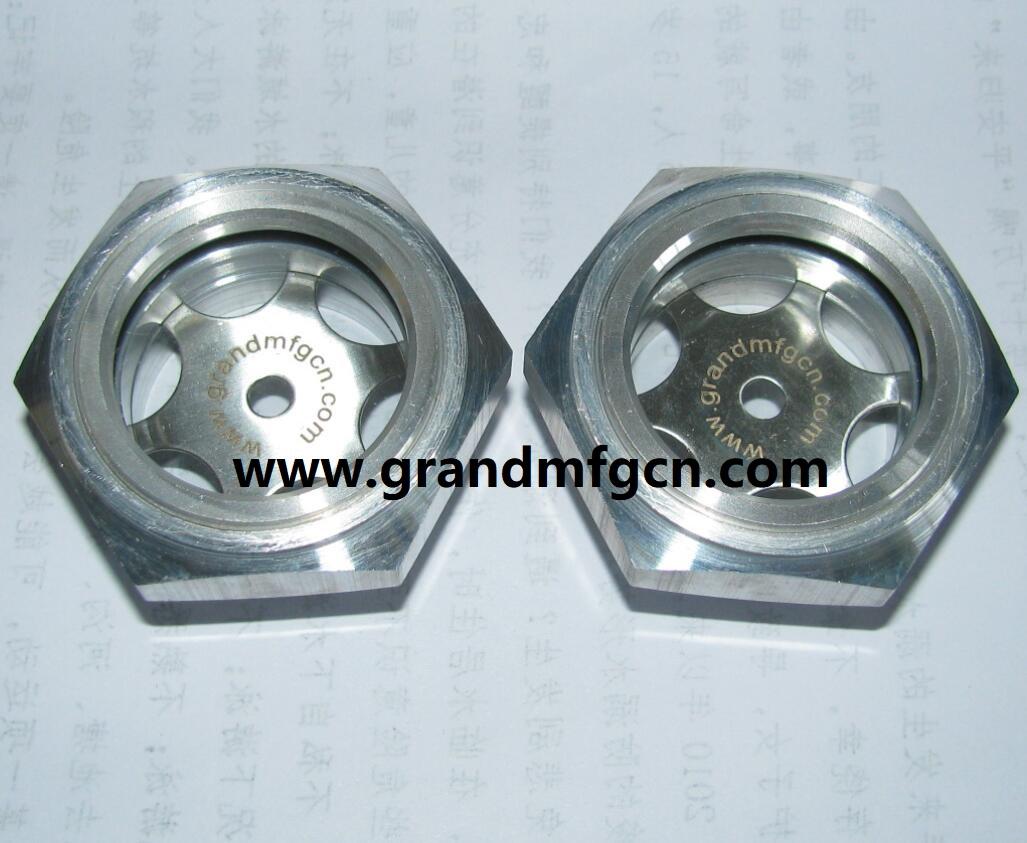

Reflectors: Stainless Steel 304 Reflector

                 (Any type you can chose with reflector or without Reflector,  You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 128'C

Pressure Range:  5-50 Bar(0.5MPa to 5 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage:  Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

Product Image

ALUMINUM OIL SIGHT GLASS
ALUMINUM OIL SIGHT GLASS

ALUMINUM OIL SIGHT GLASS
ALUMINUM OIL SIGHT GLASS

ALUMINUM OIL SIGHT GLASS
ALUMINUM OIL SIGHT GLASS

Circular aluminum oil level indicator
Circular aluminum oil level indicator

ALUMINUM OIL SIGHT GLASS
ALUMINUM OIL SIGHT GLASS

ALUMINUM OIL SIGHT GLASS
ALUMINUM OIL SIGHT GLASS

ALUMINUM OIL SIGHT GLASS
ALUMINUM OIL SIGHT GLASS



GRANDMFG ALUMINUM OIL SIGHT GLASS
GRANDMFG ALUMINUM OIL SIGHT GLASS
