Screw Pump dry vacuum system brass oil sight glass Ölschaugläser M26 M36 G1-1/4

Ölschauglas
  • Ölschauglas
  • Brass Ölschauglas
  • Ölschaugläser Brass BSP Thread
  • Brass Ölschaugläser
  • ALUMINUM COOLANT TANK SIGHT GLASS
  •  Screw Pump dry vacuum system brass oil sight glass Ölschaugläser M26 M36 G1-1/4
  •  Screw Pump dry vacuum system brass oil sight glass Ölschaugläser M26 M36 G1-1/4
  •  Screw Pump dry vacuum system brass oil sight glass Ölschaugläser M26 M36 G1-1/4
  •  Screw Pump dry vacuum system brass oil sight glass Ölschaugläser M26 M36 G1-1/4
  • BRASS OIL SIGHT GLASS
Model No.︰GM-CBM36
Brand Name︰GrandMfg®
Unit Price︰US $ 0.67 / pc
Minimum Order︰500 pc
Share on:

 Total 67 Related Items
Prev6364656667Next

Product Description

Web:  www.grandmfgcn.com



GrandMfg® Brass Oil level sight glass winow Plugs Ölschaugläser


Material Body:   Brass or brass free of lead.

O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 8 mm

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Glass shape: Flat glass and Domed glass

Resist Tempreature Range:-40'C to 180'C

Pressure Range:  5-50 Bar(1MPa to 5 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Reflectors: Stainless Steel 304 Reflector /Same as body brass as a whole sight glass.

(Any type you can chose with reflector or without Reflector,  You also can add float ball.)

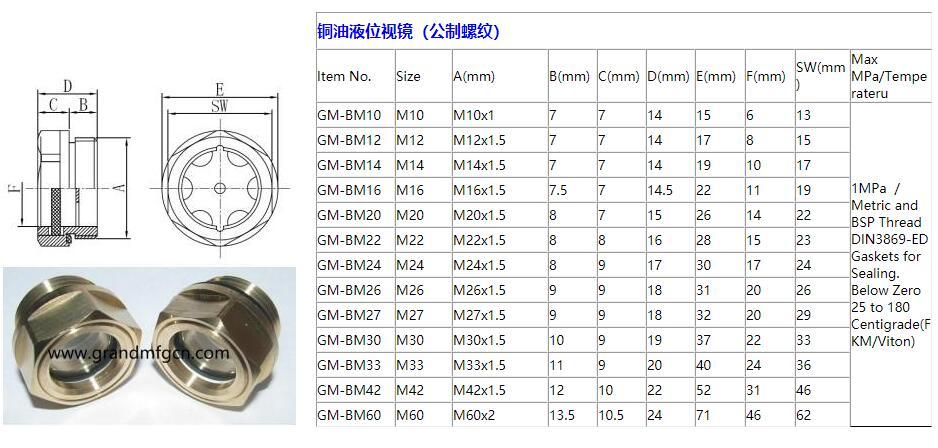

Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Allpication:  Pump,Receivers,Hydraulic tanks,Gearboxes,Speed Reducer,Gear unit,Worm gearbox, helical gear boxes, variable speed motor,auotomotive Worm gearboxes,Compressor and Power Transimission.




Product Image

Ölschauglas
Ölschauglas

Brass Ölschauglas
Brass Ölschauglas

Ölschaugläser Brass BSP Thread
Ölschaugläser Brass BSP Thread

Brass Ölschaugläser
Brass Ölschaugläser

ALUMINUM COOLANT TANK SIGHT GLASS
ALUMINUM COOLANT TANK SIGHT GLASS





BRASS OIL SIGHT GLASS
BRASS OIL SIGHT GLASS
